DATA PATCHBAY SERIES
JACK PANELS
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

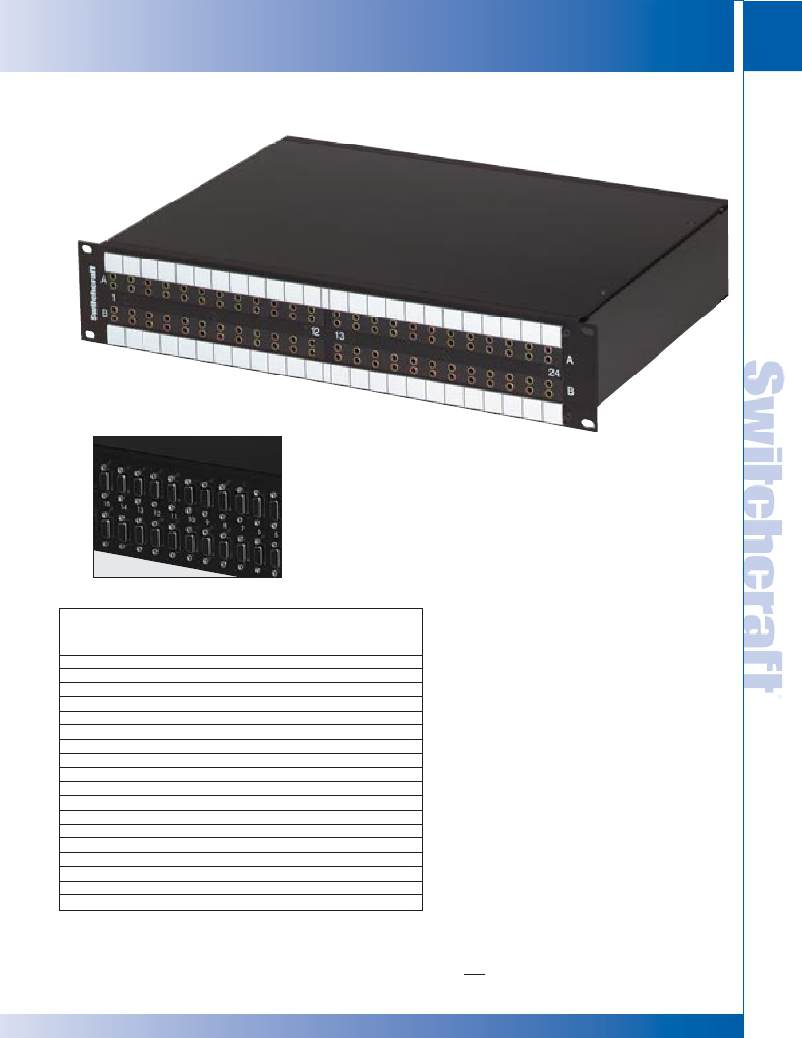

RS 422 DATA PATCHBAY SERIES
FEATURES AND BENEFITS
? Unit Features either 8,16, 24, or 32 TT style
jacks on the front Panels, to a 9 pin D-Sub
or PPT back Plane.
? All version utilize low capacitance internal wiring
for maximum performance of transferring data
? All standard units are available 1 or 2 rack
191
RS422 Ordering
Part
Number*
RS422H48N081
RS422V4N081
RS422H4N161
RS422H4N162
RS422V4N161
RS422V4N162
RS422H4N242
RS422V4N242
RS422V4N322
RS422PH4N081
RS422PV4N081
RS422PH4N161
RS422PH4N162
RS422PV4N161
RS422PV4N162
RS422PH4N242
RS422PV4N242
RS422PV4N322
Information
No. of Front Panel
Jacks Layout
2 x 8 Horizontal
2 x 8 Vertical
2 x 16 Horizontal
2 x 16 Horizontal
2 x 16 Vertical
2 x 16 Vertical
2 x 24 Horizontal
2 x 24 Vertical
2 x 32 Vertical
2 x 8 Horizontal
2 x 8 Vertical
2 x 16 Horizontal
2 x 16 Horizontal
2 x 16 Vertical
2 x 16 Vertical
2 x 24 Horizontal
2 x 24 Vertical
2 x 32 Vertical
Back Rack
Plane Height
9 Pin D-Sub 1
9 Pin D-Sub 1
9 Pin D-Sub 1
9 Pin D-Sub 2
9 Pin D-Sub 1
9 Pin D-Sub 2
9 Pin D-Sub 2
9 Pin D-Sub 2
9 Pin D-Sub 2
PPT Punchdown 1
PPT Punchdown 1
PPT Punchdown 1
PPT Punchdown 2
PPT Punchdown 1
PPT Punchdown 2
PPT Punchdown 2
PPT Punchdown 2
PPT Punchdown 2
units high (1.5 RU available by request)
? Rugged, attractive black epoxyfinished steel
frame chassis
Our standard RS data jackfield series offer a
multiple combination of ports, rack heights, and
back panel terminations which will easily fit into
any television broadcast or video production
where custom data patching is required. Custom
ports and rack height combinations can be
supplied. Contact the factory for details.
SPECIFICATIONS
ELECTRICAL
Internal Wiring:
24 AWG Solid TC, foils shield
Nom Capacitance: 11.5 pF/ft between conductors
21.3 pF/ft between one conductor and conductor
connected to the shield
Nom . Impedance: 110 Ohms
*Add "N" for non-normalled version
See Page 267 for Patchcord Information
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
